Description
Ultraviolet sterilization is the irradiation of ultraviolet rays, which destroys and changes the DNA (deoxyribonucleic acid) structure of microorganisms, so that the bacteria immediately die or cannot reproduce the offspring and achieve the purpose of sterilization. The true bactericidal effect is UVC ultraviolet light, because the C-band ultraviolet ray is easily absorbed by the DNA of the living body, and the ultraviolet ray of about 253.7 nm is optimal.
Application
Pure water, domestic water, ionized water, medical water and various water disinfection;
Water treatment equipment, aquarium equipment, air and object surface disinfection;

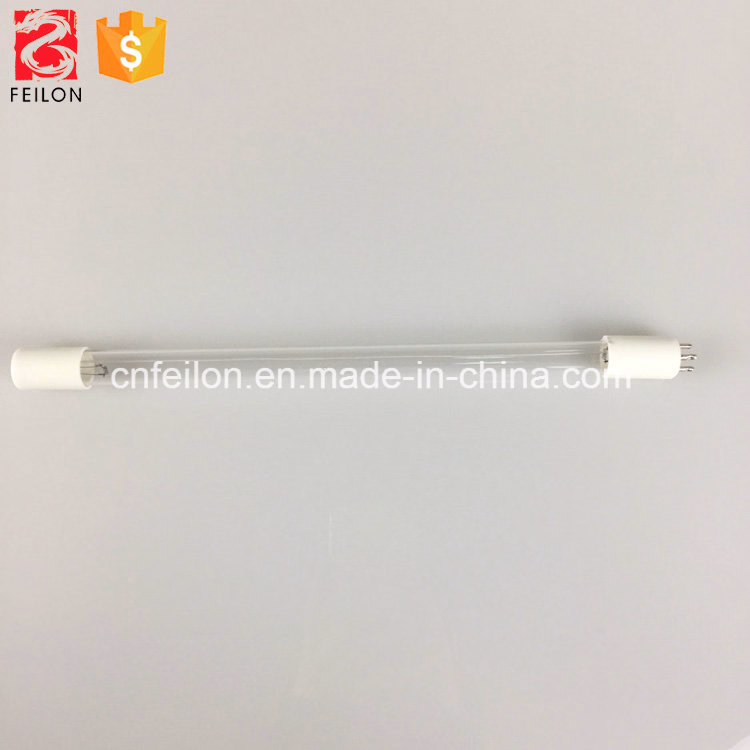

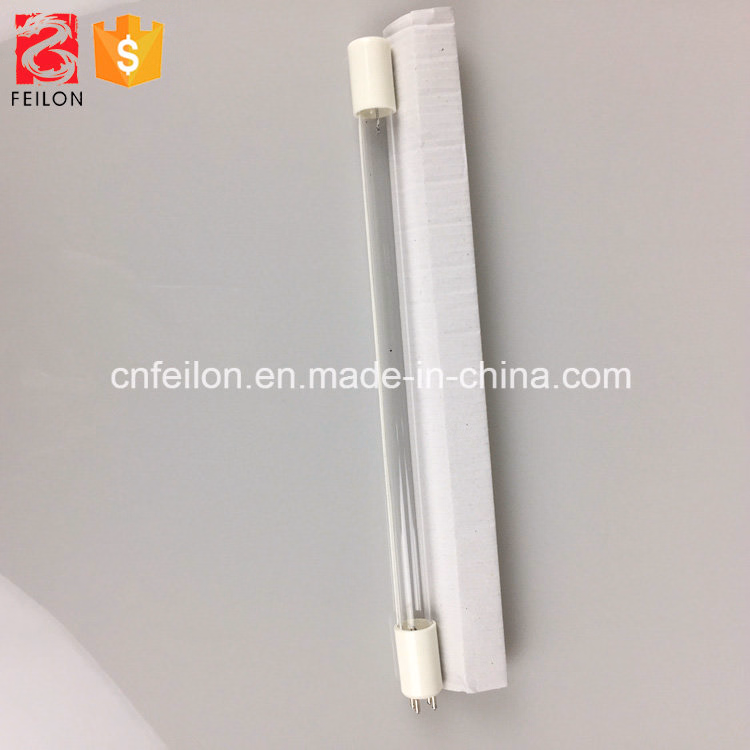

Photos
Related Product
Ultraviolet sterilization is the irradiation of ultraviolet rays, which destroys and changes the DNA (deoxyribonucleic acid) structure of microorganisms, so that the bacteria immediately die or cannot reproduce the offspring and achieve the purpose of sterilization. The true bactericidal effect is UVC ultraviolet light, because the C-band ultraviolet ray is easily absorbed by the DNA of the living body, and the ultraviolet ray of about 253.7 nm is optimal.
The ultraviolet lamp uses the ultraviolet light emitted by the mercury lamp to realize the sterilization function. The ultraviolet energy emitted by the ultraviolet lamp is large, and if there is no protective measure, it is extremely easy to cause great damage to the human body.
Specification
Lamp Type | Tube Diameter | Lamp Length | Lamp Power | Lamp Current | Lamp Voltage | 254nm UV output@1M | Average Life |
| mm | mm | W | mA | V | μw/cm³ | Hours | |
| ZW10D15W-Z212 | 15 | 212 | 10 | 425 | 22-39 | 21-24 | 8000 |
| ZW14D15W-Z287 | 15 | 287 | 14 | 425 | 28-39 | 31-35 | 8000 |
| ZW15D15W-Z303 | 15 | 303 | 15 | 425 | 30-40 | 33-37 | 8000 |
| ZW17D15W-Z356 | 15 | 356 | 17 | 425 | 34-46 | 48-54 | 8000 |
| ZW23D15W-Z436 | 15 | 436 | 23 | 425 | 40-55 | 62-69 | 8000 |
| ZW28D15W-Z550 | 15 | 550 | 28 | 425 | 51-69 | 85 | 8000 |
| ZW37D15W-Z793 | 15 | 793 | 37 | 425 | 78-101 | 110 | 8000 |
| ZW40D15W-Z842 | 15 | 843 | 40 | 425 | 81-99 | 120-130 | 8000 |
| ZW55D15W-Z1149 | 15 | 1149 | 55 | 425 | 122-149 | 150-180 | 8000 |
| ZW75D15W-Z1554 | 15 | 1554 | 75 | 425 | 173-210 | 180-210 | 8000 |
| ZW80D19W-Z846 | 19 | 846 | 80 | 800 | 120 | 240-270 | 8000 |
| ZW120D19W-Z1149 | 19 | 1149 | 120 | 800 | 170 | 330-380 | 8000 |
| ZW150D19W-Z1554 | 19 | 1554 | 150 | 800 | 220 | 400-450 | 8000 |
| ZW240D19W-Z1554 | 19 | 1554 | 240 | 1800 | 190 | 650-680 | 8000 |
| ZW320D19W-Z1554 | 19 | 1554 | 320 | 2200 | 180 | 800-830 | 8000 |
Application
Pure water, domestic water, ionized water, medical water and various water disinfection;
Water treatment equipment, aquarium equipment, air and object surface disinfection;
