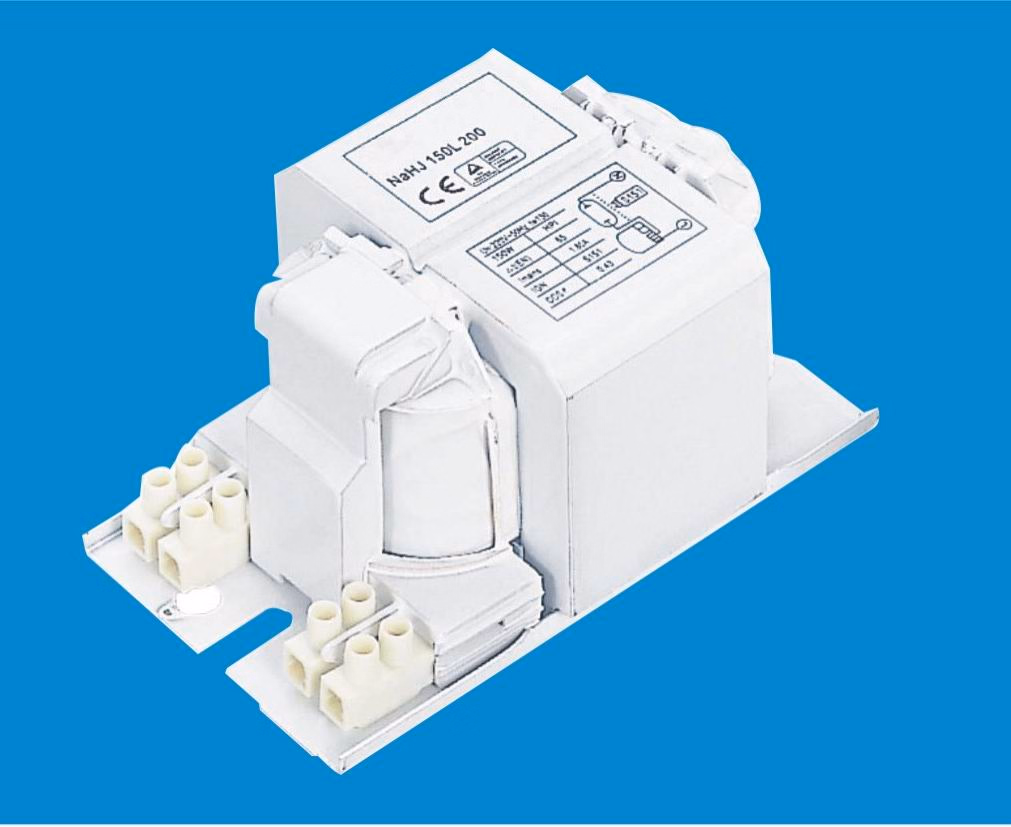

Ballast For Mercury Lamp And Metal Halide Lamp
Feature
Be fit for install in luminanaires.
Impregnated in poliester resin at high vacuum.
Rated winding temperature Tw=130.
Meet EN61347 safety and EN60927 performance standard.
Protection class
We can supply Copper winding and Aluminim winding, V. S DESIGN AND PHLPS DESIGN.
Feature
Be fit for install in luminanaires.
Impregnated in poliester resin at high vacuum.
Rated winding temperature Tw=130.
Meet EN61347 safety and EN60927 performance standard.
Protection class
We can supply Copper winding and Aluminim winding, V. S DESIGN AND PHLPS DESIGN.
| Description | Lamp Watt | Lamp Current | Supply Voltage/Frequency | Power Factor | Dimension Size(mm) | Temp.Rise | |||
| MH/HPS50-P | 50W | 0.76 | 220-240V/50-60Hz | 0.37 | 117 | 102 | 60 | 52 | 65 |
| MH/HPS70-P | 70W | 0.98 | 220-240V/50-60Hz | 0.38 | 117 | 102 | 60 | 52 | 70 |
| MH/HPS100-P | 100W | 1.20 | 220-240V/50-60Hz | 0.42 | 117 | 102 | 60 | 52 | 70 |
| MH/HPS150-P | 150W | 1.80 | 220-240V/50-60Hz | 0.4 | 125 | 108 | 75 | 65 | 70 |
| HPS250-P | 250W | 3.00 | 220-240V/50-60Hz | 0.4 | 150 | 130 | 75 | 65 | 75 |
| HPS400-P | 400W | 4.60 | 220-240V/50-60Hz | 0.42 | 185 | 160 | 75 | 65 | 80 |
| HPS600-P | 600W | 6.20 | 220-240V/50-60Hz | 0.45 | 190 | 170 | 100 | 82 | 80 |
| HPS1000-P | 1000W | 10.30 | 220-240V/50-60Hz | 0.44 | 248 | 217 | 102 | 92 | 80 |
