The compatibility between UV germicidal lamps and ballasts is very important, but which is often ignored unfortunately during practical application.
There are magnetic ballasts and electronic ballasts in the market, but the latter is more environmental than the former, saving energy. Lightbest can provide multiform electronic ballasts and inverters compatible with lamps.
![1.8A 150W Amalgam UV Germicidal Lamp Ballast T6 UVC 254nm Light Electronic Ballast](https://img3.grofrom.com/jhfis/64773e464ef4278147fc40a391e53550.webp)
![1.8A 150W Amalgam UV Germicidal Lamp Ballast T6 UVC 254nm Light Electronic Ballast](https://img3.grofrom.com/jhfis/f705df821c3f7dcc265cd3a2a7a3810d.webp)
![1.8A 150W Amalgam UV Germicidal Lamp Ballast T6 UVC 254nm Light Electronic Ballast](https://img3.grofrom.com/jhfis/ddb9f00a102b09f36395a7139afeab57.webp)
- PH8-800-155
Wiring Diag:A
2*Lamp Type:GPH846T5HO GPH893T5HO GHO36T5L TUV36T5HO TUV55WHO TUV75WHO
Wiring Diag:B
- PH8-1200-190
Wiring Diag:A
2*Lamp Type: GPHA843T5 GPHA357T5
Wiring Diag:B
- PH8-1500-150
Wiring Diag:A
2*Lamp Type: NNI80/36U NIQ75/34 UVL80W/T5
Wiring Diag:B

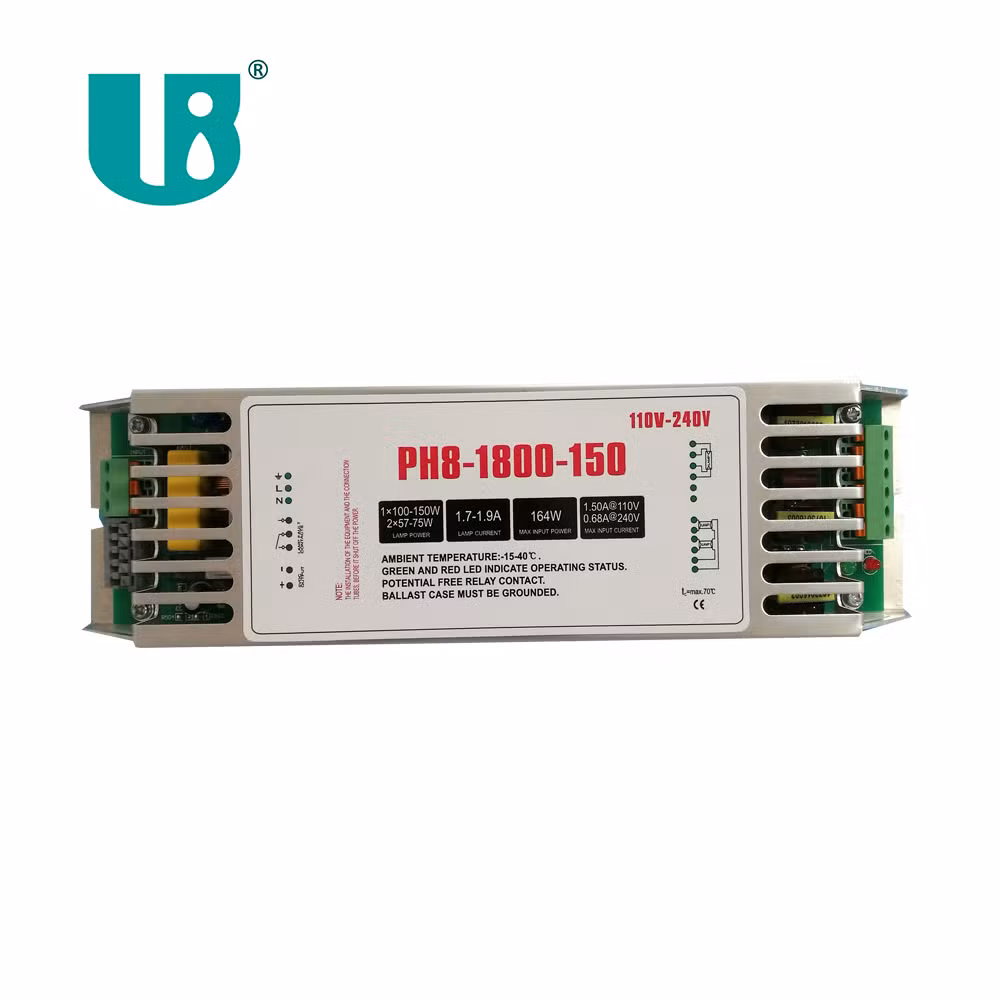

- PH8-1800-150
Wiring Diag:A
2*Lamp Type:GPHA357T6
Wiring Diag:B
- PH8-2100-200
Wiring Diag:A
- Technical specifications
Mains Frequency:50/60Hz
Power Factor: >0.98
Efficiency: >92%
Operating Frequency: 40-60KHz
Dimensions: 250*65*40mm
- Lamp status indication via LED indication
Red LED:Lamp fault
- Lamp status forwarding
- Installation requirement
Max.cable length between ballasts and lamp:5m
Relay contacts:potential free,load:50…500mA at 24…230V AC;
50…500mA at 5…60V DC
DC5V±5% 5mA:lamp on. DC 0V:lamp fault or on lamp. Connect LED.
DC5V±10% Max 50mA:lamp on. DC 0V:lamp fault or on lamp. Connect Relay.
- Mounting restrictions
Ballast Case Must Be Grounded.
Don't short any two wires of the four outputs.
- Features
- Applications
All areas of applications includes UV lamps
=>Air purification
=>Industrial water treatment
=>Municipal water treatment
Type | Input Voltage(V) | Input Power (W) | Input Current (A) | Power Per Lamp(W) | Lamp Current(A) | Weight (kg) | Packing (mm) | Qty ( pcs ) | GW (kg) |
PH8-800-155 | 99-264 | 168 | 1.53A@110V 0.70A@240V | 55~155 | 0.75-0.85 | 0.53 | 450*280*190 | 18 | 10.5 |
PH8-1200-190 | 99-264 | 206 | 1.87A@110V 0.85A@240V | 42-190 | 1.1-1.3 | 0.53 | 450*280*190 | 18 | 10.5 |
PH8-1500-150 | 99-264 | 164 | 1.50A@110V 0.68A@240V | 57-10 | 1.4-1.6 | 0.53 | 450*280*190 | 18 | 11 |
PH8-1800-150 | 99-264 | 164 | 1.50A@110V 0.68A@240V | 65-150 | 1.7-1.9 | 0.53 | 450*280*190 | 18 | 11 |
PH8-2100-200 | 99-264 | 217 | 1.98A@110V 0.90A@240V | 200 | 2.0-2.2 | 0.53 | 450*280*190 | 18 | 11 |
![1.8A 150W Amalgam UV Germicidal Lamp Ballast T6 UVC 254nm Light Electronic Ballast](https://img3.grofrom.com/jhfis/7cca6e1d2639e39cf2acc4a2cd61bfe0.webp)
![1.8A 150W Amalgam UV Germicidal Lamp Ballast T6 UVC 254nm Light Electronic Ballast](https://img3.grofrom.com/jhfis/642e22a05290e4692815a46e62b33d7f.webp)
![1.8A 150W Amalgam UV Germicidal Lamp Ballast T6 UVC 254nm Light Electronic Ballast](https://img3.grofrom.com/jhfis/ea0a68bf704285f00f32865597c8270d.webp)
![1.8A 150W Amalgam UV Germicidal Lamp Ballast T6 UVC 254nm Light Electronic Ballast](https://img3.grofrom.com/jhfis/de9e7cb3f0c4b736434b5a82e1c04060.webp)
